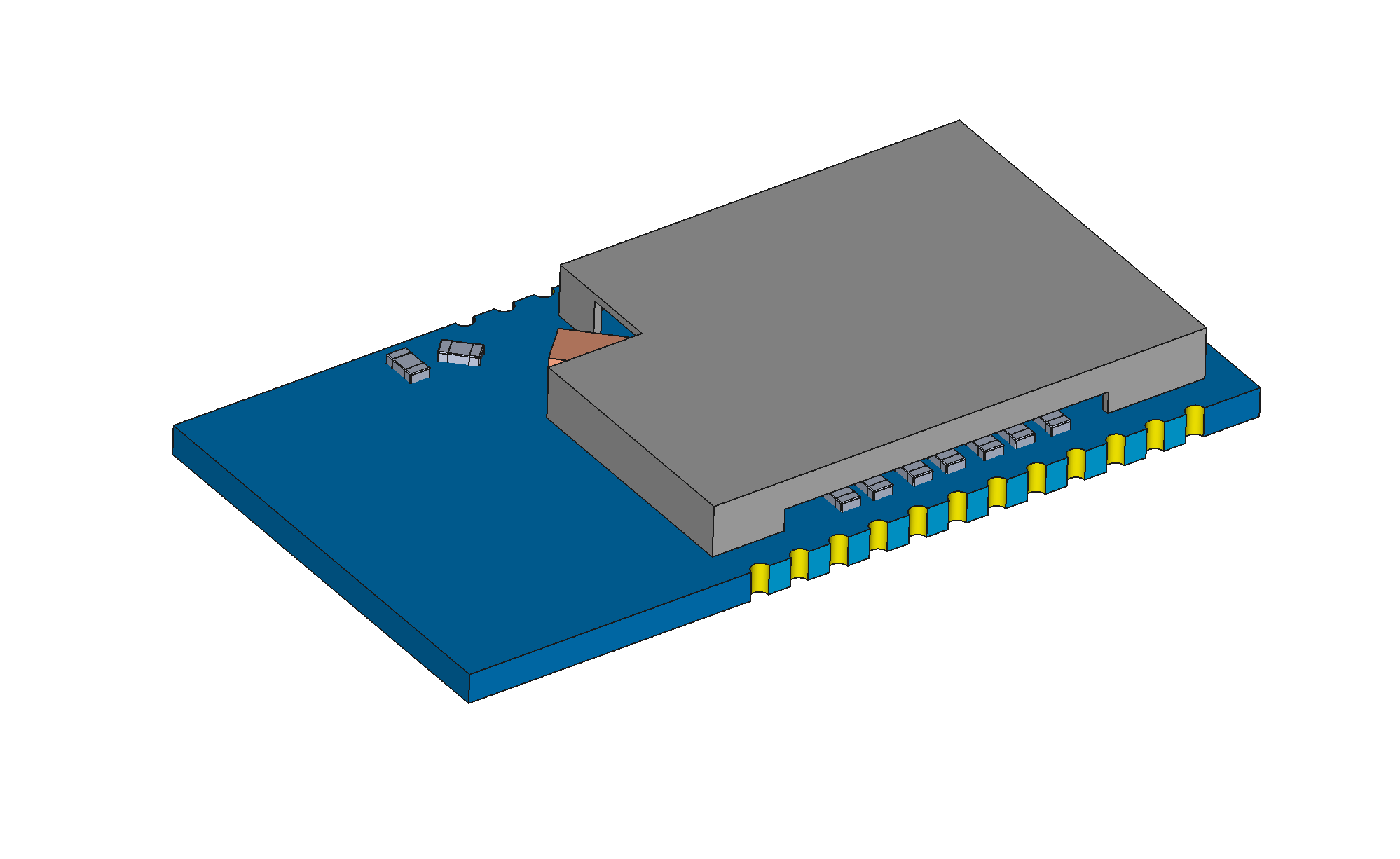

FMB121
Bluetooth V5.4 Dual Mode — LE Audio Sink / Auracast™ Receiver.
Description
The FMB121 is a dual‑mode, Class 1 Bluetooth® V5.4 module designed as an LE Audio sink. It receives audio over LE Audio or classic Bluetooth (A2DP) and outputs to your system via I2S, USB or analog—ideal for headphones, speakers, sound bars, hearing‑assist receivers and embedded designs.
Auracast™ receiver: FMB121 can discover and join public or private LE Audio broadcast streams (BMR), enabling one‑to‑many listening scenarios in spaces such as airports, classrooms, stadiums, gyms and bars. Users can select a broadcast by name or QR code (via your host/app), and the module handles stream setup and synchronization.
LE Audio unicast roles are supported for private listening and two‑way use cases: Unicast Music Receiver (UMR) with Gaming mode, and Call Terminal (CT). For compatibility with legacy devices, FMB121 also works as a classic Bluetooth A2DP receiver with optional low‑latency codecs.
Supported codecs include SBC and LC3 for LE Audio, plus Qualcomm aptX® family (aptX, aptX HD, aptX Adaptive, and aptX Adaptive Lossless) for high‑quality music and gaming with compatible sources. The module integrates a full stack and on‑board DSP, and is controlled via simple ASCII commands over UART/USB (enumerates as a virtual COM port on Windows/Mac/Linux). We provide iOS/Android libs to simplify device control, pairing, broadcast selection and firmware updates.
For details, see the datasheet or contact us / our distributors for samples and design support.
Qualcomm, Snapdragon and aptX are trademarks of Qualcomm Incorporated, registered in the United States and other countries. Auracast is a trademark owned by Bluetooth SIG Inc., USA. Other trademarks and trade names are those of their respective owners.
Mobile Apps
Features
- Dual mode Bluetooth v5.4
- Support aptX™, aptX HD, aptX Adaptive, and aptX Adaptive Lossless.
- LE Audio Unicast Music Receiver (UMR) with Gaming mode, Call Terminal (CT)
- LE Audio Broadcast/Auracast™ Receiver (BMR)
- LE Audio Gaming mode with Voice Back Channel
- Ultra-low latency LE Audio Gaming mode with FMA120
- +15dBm BR TX power, -97dBm BR RX sensitivity
- +15dBm BLE TX power, -100.5dBm BLE 1Mb/s RX sensitivity
- Support BREDR Profiles: SPP, HID, OPP, HFP/HSP, AG, A2DP (other profiles on request)
- UART/I2C/SPI master multiplexed with PIOs
- 10 digital PIOs (multiplexed with UART/I2C/SPI), 3 LED outputs multiplexed with AIOs
- Support SBC, AAC and aptX™ codec
- 22mm x 12mm x 2.2mm
- Weight: 1g
- Castellated pins for easy and reliable PCB mounting
- RoHS compliant
